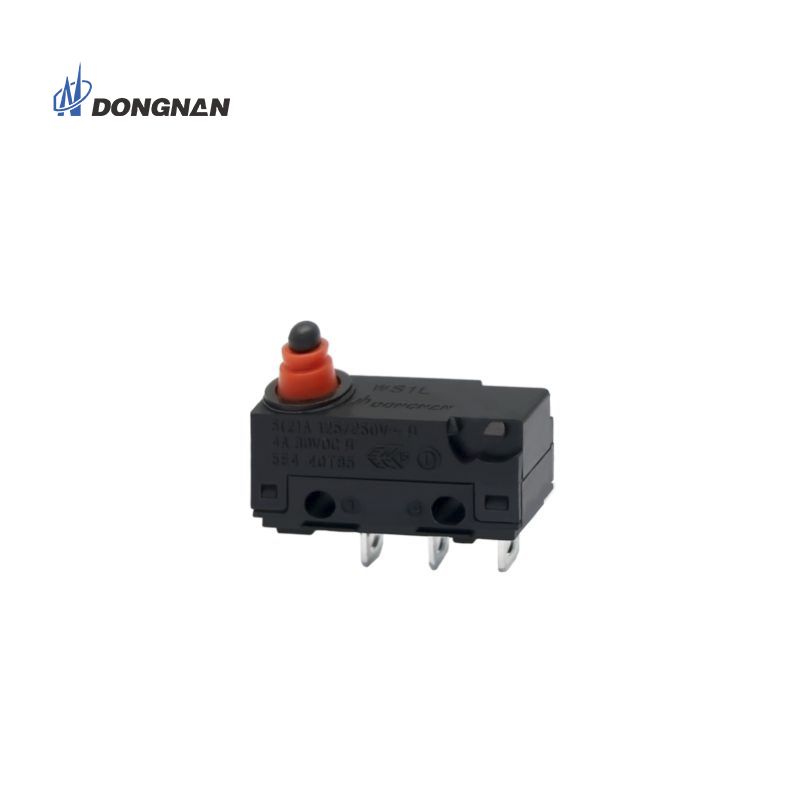

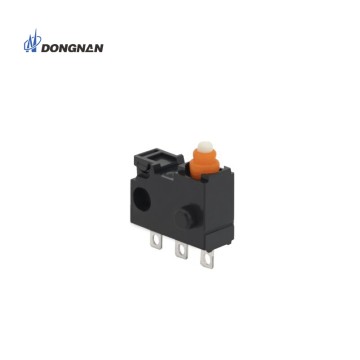

Model：WS1L

By adopting a special waterproof ring design, it has greatly improved the waterproof performance of WS1L waterproof micro switch. Ideal for automobiles due to its long travel and vibration resistance.

Contact us
product details

Product Video

Product Features

-To be stably sealed by sealed rubber ring and epoxy resin. Can be used in wet or dusty places.
-A variety of contact terminals, provide with a variety of wires.
-A variety of levers.
-Can be used in environment resistant requirements application, outdoor equipments such as automobile, vending machine, refrigerator, ice machine, bath equipment, water heater and air-conditioner etc.

description2

Refrigerator Snap Action Waterproof Micro Switch Factory Direct Sales

Product Parameters

Item Value
Operating speed 0.1mm~1m/s (no lever)
Operating frequency Mechanical 60 cycles/min; electrical 25 cycles/min
Insulation resistance ≥100MΩ(500VDC)
Contact resistance Terminal type ≤ 50mΩ
Wire type ≤ 100mΩ
Test voltage Between terminals of the same polarity AC1000V , 50/60Hz , 1min
Between current-carrying metal parts and Ground(case), and between each terminal and non-current-carrying metal parts. AC1500V , 50/60Hz , 1min
Vibration resistance 10~55Hz , 1.5mm Double amplitude
Shock resistance endurance : 1000m/s2(approx. 100G) max
Wrong action : 300m/s2 (approx. 30G) max
Electric shock proof protection grade I class
Degree protection provided by enclosure IEC IP67 (Besides terminal part of terminal type )
Life Mechanical ≥ 1,000,000 cycles
Electrical ≥ 50,000 cycles
Safety approvals UL ,CUL ,ENEC ,DEMKO

Application

WS1L waterproof micro switch in coffee machine applied in a wide range of functions, mainly used in the grinding machine. The main function of the ip67 micro switch is to check whether the grinding appliance is in place or not. When the user wants to grind coffee powder, if the grinding appliance is not placed in place, the ip67 micro switch will detect it, and then the coffee machine will not start grinding coffee. In addition, since grinding coffee produces a large amount of coffee powder, the micro switch has a good seal that prevents the powder from entering the inside of the switch and affecting the service life of the switch.
