Dishwasher Miniature 12 Volt Waterproof Micro Switch

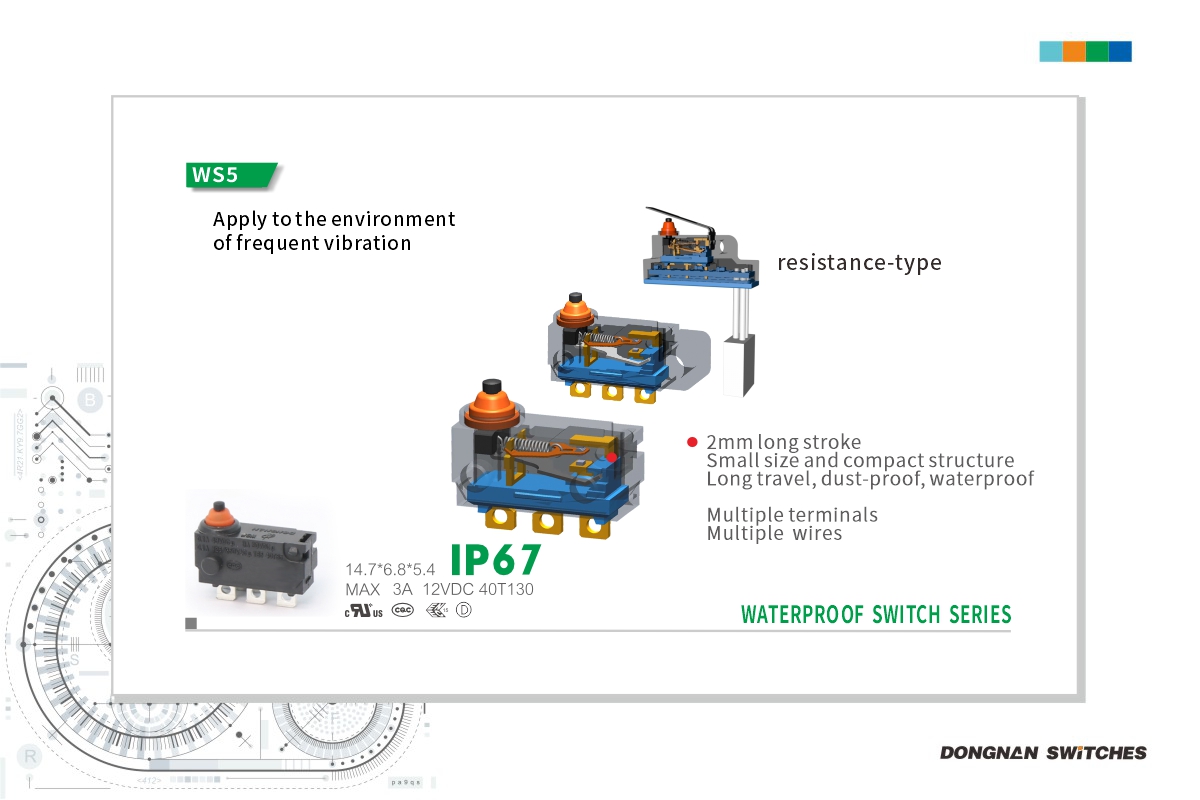

Model：WS5

The compact and tiny WS5 12 volt waterproof micro switch has a compact design. A waterproof momentary micro switch is the best option for managing the water valve on the dishwasher. Additionally, the WS5 miniature waterproof switch has a range of wire options, giving it flexibility to accommodate various installation requirements. This compact waterproof switch’s sturdy construction and long-lasting functionality guarantee reliable, efficient operation in difficult and wet conditions.

product details

Product Video

Product Features

-This compact micro switch is designed with the latest technology to provide a long travel while remaining dustproof. With a small size and compact structure, our Miniature Waterproof Switch is ideal for confined spaces due to its small size and compact design, which allows it to fit neatly into any appliance.

-Despite its small size, it offers a long travel, ensuring precise and efficient control of the water valve in your dishwasher, The device is equipped with a variety of contact terminals, allowing for easy installation and compatibility with various wires.

- This waterproof micro switch is waterproof. This feature ensures the longevity of the device and minimizes the risk of damage from moisture, Our product is not only reliable and durable but also versatile.

It has resistant type.

description2

Product Parameters

Item		Value
Operating speed		0.1mm~1m/s (no lever)
Operating frequency		Mechanical 60 cycles/min; electrical 25 cycles/min
Insulation resistance		≥100MΩ(500VDC)
Contact resistance		Terminal type ≤ 50mΩ Wire type≤ 100mΩ(24#,L≤ 200mm)
Test voltage	Between terminals of the same polarity	AC500V , 50/60Hz , 1min
	Between current-carrying metal parts and ground(case),and between each terminal and non-current-carrying metal parts.	AC1500V , 50/60Hz , 1min
Vibration resistance		10~55Hz , 1.5mm Double amplitude
Shock resistance		endurance:1000m/s²(approx.100G)max Wrong action:300m/s²(approx.30G)max
Electric shock proof protection grade		I class
Case protection degree		IEC IP67(Except terminal part of terminal type) Or other grades
Life		Mechanical ≥ 500,000 cycles Electrical ≥ 100,000 cycles
Safety approvals		UL/CUL ,TUV,CE ,CQC

Applications

It is typically located in the water level control unit of washing machines. The water level control device senses changes in the water level and uses that information to regulate the water valve switch when the washing machine needs to add water. The water level is detected using the waterproof micro switch.

description2

Quality Dishwasher Miniature 12 Volt Waterproof Micro Switch for sale

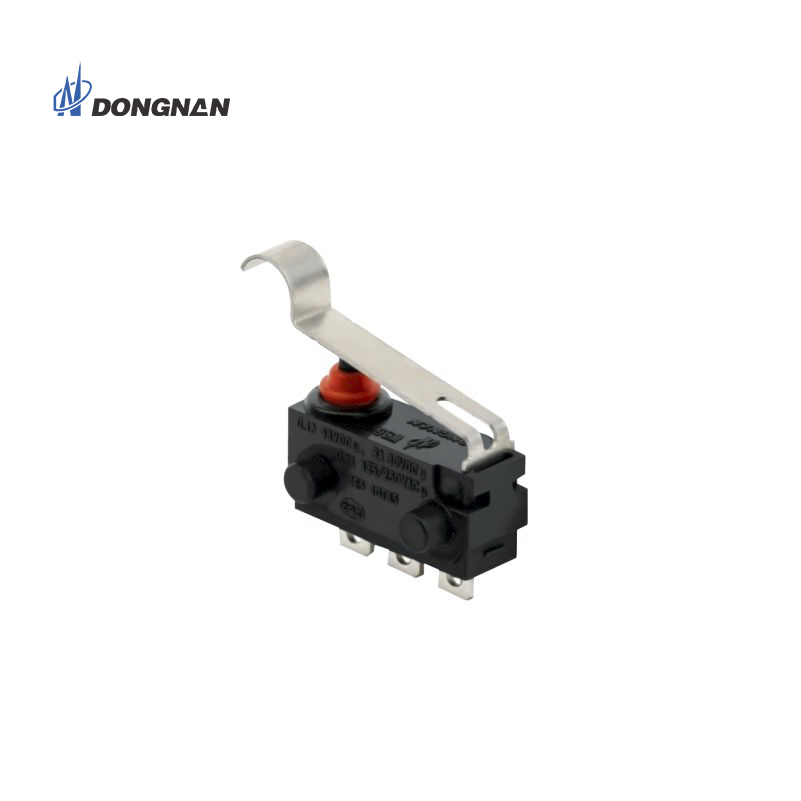

Dishwasher Miniature 12 Volt Waterproof Micro Switch Images
