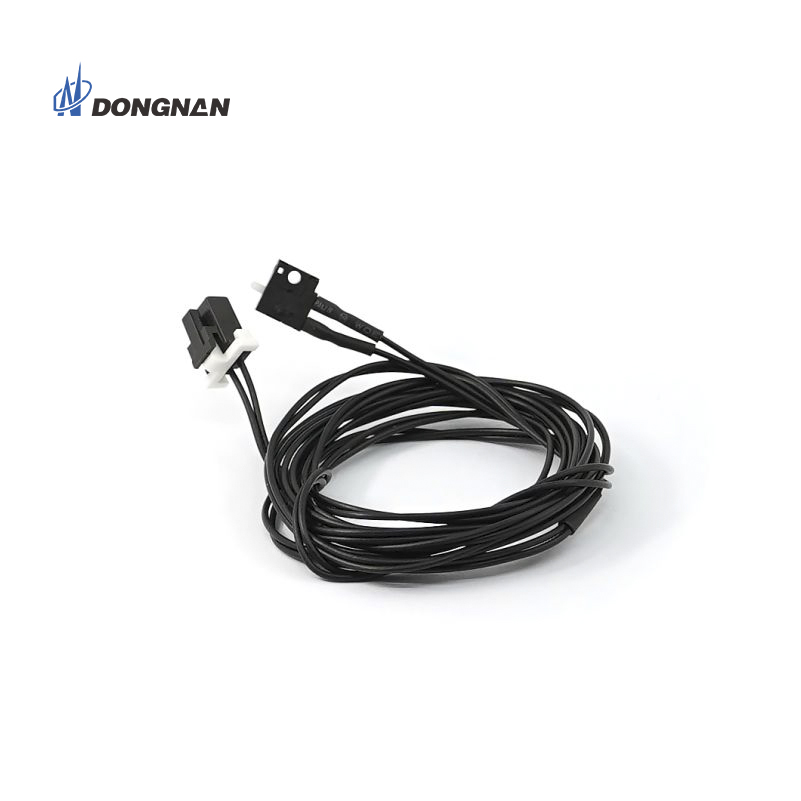

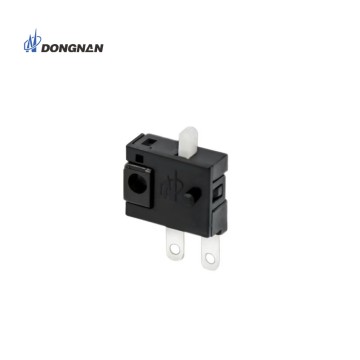

DVD Low Voltage DC type Small Micro Switch 25T85

Model：MS7

The MS7 small micro switch is a miniature one made especially for air conditioner and DVD. Because of its small size and spring sheet structure, the low voltage micro switch is simple to integrate into these devices and requires little force. Because of this, it is a valuable and practical part of many different kinds of electronic applications. With a maximum current of 6V, the DC micro switch is a low-voltage switch that can be used in various electronic devices.

product details

Product Features

-Low Voltage Micro Switch provides unmatched convenience and dependability with its straightforward construction and excellent functionality. Its compact size and stable contact design guarantee steady operation even with frequent use.

-Its ability to be disassembled quickly adds to its longevity and efficiency by making maintenance and cleaning easier. Furthermore, this Dc Micro Switch's robust anti-vibration construction makes it appropriate for use in a variety of settings and circumstances.

-Small Micro Switch is made to resist daily use, whether it is being used for residential or commercial purposes.

-For dustproof control devices for floor air conditioners, our compact size switch is the best option. It is a useful addition to any air conditioning system because of its sturdy construction, dependable performance, and ease of maintenance.

description2

Product Parameters

Item		Value
Operating speed		0.1mm~1m/s(No lever)
Operating Frequency		Mechanical 60 cycles/min; Electrical 25 cycles/min
Insulation resistance		≥100MΩ(500VDC)
Contact resistance		≤50mΩ
Test voltage	Between terminals of the same polarity	AC660V,50/60Hz, 1min
	Between current-carrying metal parts and ground(case), and between each terminal and non-current-carrying metal parts.	AC1500V, 50/60Hz , 1min
Vibration resistance		10~55Hz , 1.5mm , double amplitude
Shock resistance		Endurance: 1000m/s2(approx.100G)max Wrong action :300m/s2(approx.30G)max
Electric shock proof protection degree		II class
Life		Mechanical≥500,000 cycles Electrical≥250,000 cycles

Application

The micro switch's robust and effective design efficiently filters out dust and debris without preventing the air conditioner from running, enhancing both the unit's overall performance and energy efficiency. Furthermore, our micro switch is composed of premium materials that are resilient to deterioration, guaranteeing your air conditioner will be protected for an extended period.

description2
