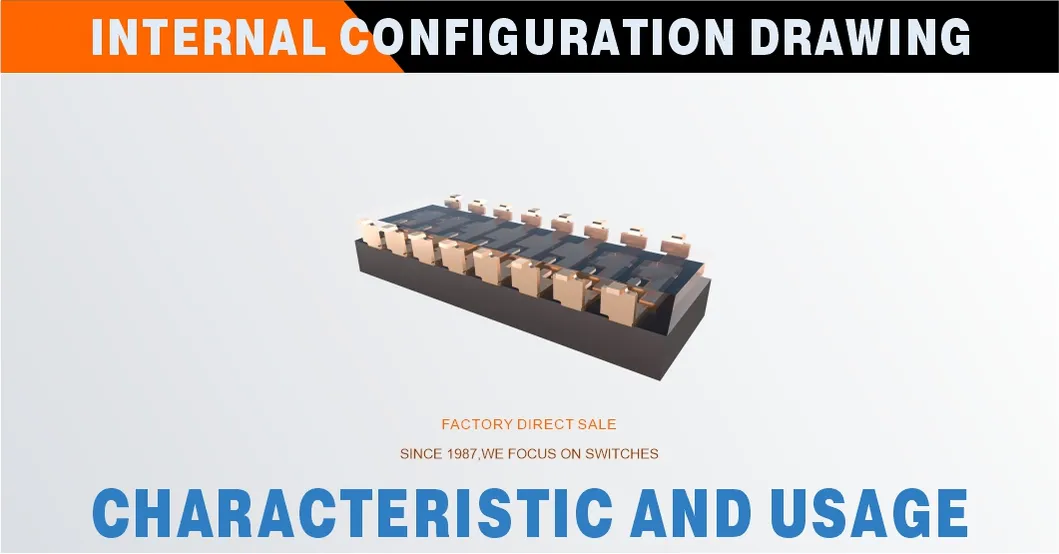

Internal configuration drawing
1.Compact structure,small size stable contact widely used in computer motherboard overclocking,wireless communication,radio and television and other equipments
2.Stable and reliable contact Product show
Technical characterictics
| Item | Value |
| Environment temperature | -30~+85ºC |
| Operating speed | 30mm ~600mm/s |
| Operating frequency | Mechanical 60 cycles/min; electrical 15cyclesimin |
| Insulation resistance | 100MΩ ( 100VDC) |
| Contact resistance | ≤50MΩ |
| (Test voltage) Between terminals of the same polarity | AC300V, 50/60Hz , 1min |
| (Test voltage) Between current-carrying metal parts and ground(case),and between each terminal and non-current-carrying metal parts. | AC500V , 50/60Hz , 1min |
| Vibration resistance | 10-55Hz , 1.5mm double amplitude |
| Shock resistance | Endurance: 1000m/s(100Gapprox.10OG)max
Wrong action:300m/s(30Gapprox.30G)max |
| Electrical Life | ≥1,000cycles |
| Mechanical Life | ≥1,000cycles |
Company Profile
DONGNAN ELECTRONICS CO.,LTD established in 1987, with more than 30 years manufacturing experience in making switches. Mainly produce micro switches, water proof micro switches, power switches, gate control switches, rotary switches, voltage-selected switches etc. We are a national-level new and high-tech switch manufacturing enterprise that has R&D, producing, marketing and after-sales service, and our switches are widely used in whole China and oversea countries.
At present, we set up many offices and warehouses in the production area which home appliances are concentrated, to build the fastest technical service and logistics distribution system. Company information
Exhibition
Certifications
FAQ
Q1.Compared with others, how is your price?
Our switch quality is guaranteed, the price is the factory price, no middlemen, good quality, good price.
Q2.How many square meters of your factory?
Our new factory is about 74,336 square meters
Q3.Does your product meet ROHS standards?
Yes, we meet ROHS standards
Q4.What Quality Assurance System does your factory pass?
GB/T19001-2008, ISO45001:2004, BSOHSAS18001:2007, QC080000 , IATF 16949
Q5.Do we have chance to be your dealer?
If your company can meet the conditions, we will evaluate and apply for you to be our dealer.
