Sensitive Micro Limit Switch Push Button t125 5e4 Wholesale

Model: KW4B

The KW4B micro switch uses nickel silver contact which increases switch service life and provides high reliability. The max rated current is 10(4)A250VAC 0~10A 0~36VDC. Widely used in automation equipment and electronic equipment.

product details

Product Features

-Safe,reliable miniature switch

-Tight configuration.Characteristic:small contact gap, quick action,high sensitivity and small operating travel.

-Long life,high reliability

-A variety of contact terminals

- A variety of levers

-Widely used in home appliance,electronic equipment,automatic machine,communication equipment,car electron,apparatus and instrument etc.

description2

Product Parameters

Item	Value
Operating speed	0.1mm~1m/s (Related with actuator forms)
Operating frequency	Mechanical 60 cycles/min; electrical 25 cycles/min
Insulation resistance	≥ 100MΩ(500VDC)
Contact resistance	OF>0.5N:≤30mΩ OF≤0.5N:≤50mΩ
(Test voltage) Between terminals of the same polarity	AC1000V , 50/60Hz , 1min
(Test voltage) Between current-carrying metal parts and ground(case), and between each terminal and non-current-carrying metal parts.	AC1500V , 50/60Hz , 1min
Vibration resistance	10~55Hz , 1.5mm Double amplitude
Shock resistance	Destruction:OF>0.5N:1000m/s2(approx.100G)max OF≤0.5N:500m/s2(approx.50G)max Malfunction:OF>0.5N:300m/s2(approx.30G)max OF≤0.5N:200m/s2(approx.20G)max
Weight	Approx.1.6g(No lever)
Life	Mechanical ≥ 1,000,000 cycles Electrical ≥ 10,000 cycles
Safety approvals	UL,CUL,VDE,TUV,ENEC,DEMKO,CE,EK,CQC

Application

DONGNAN switch's micro switches are used in a variety of devices and can be used in household appliances, electronic equipment, automation equipment, etc. Its premium quality makes it the first choice of major well-known brands. We provide competitive price for your order.

Company Advantage

DONGNAN ELECTRONIC CO.,LTD. has advanced standardization production equipment; high precision manufacturing processing equipment; German type mold manufacturing and design capabilities, world-class testing laboratory; close cooperation team. Strictly carry out quality control measures, and improve the quality of our products constantly, to provide customers with competitive products and satisfactory service, awareness of quality services to every worker.

description2

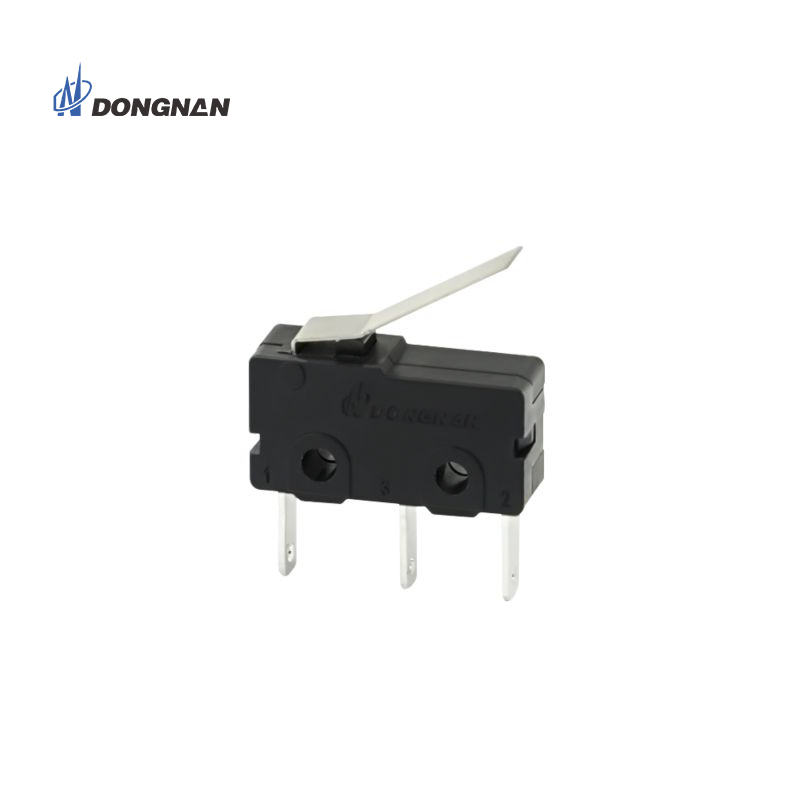

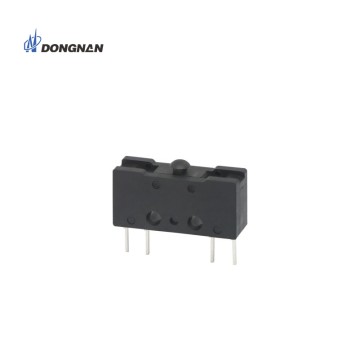

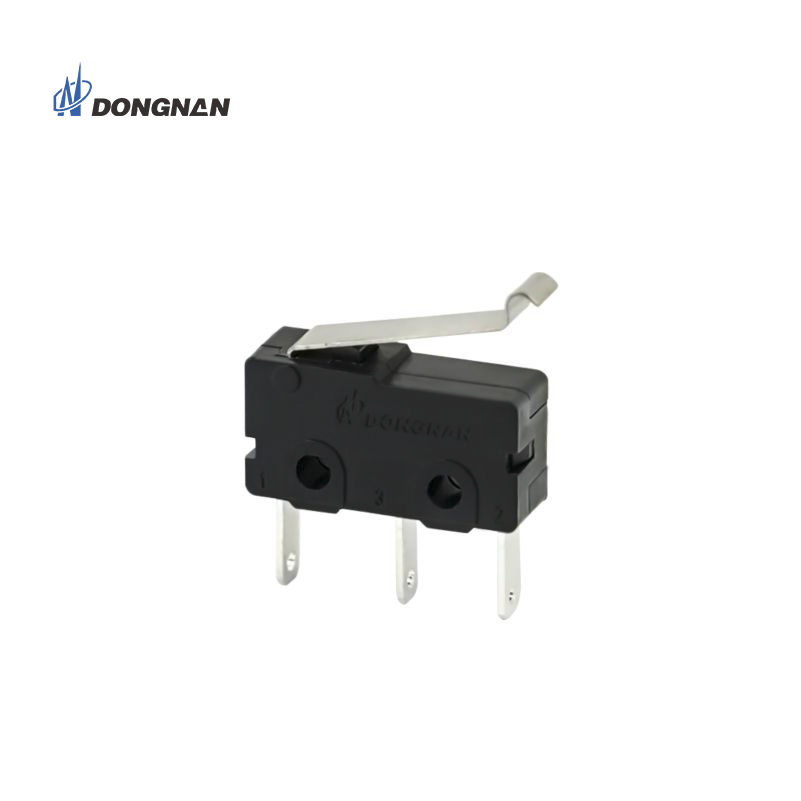

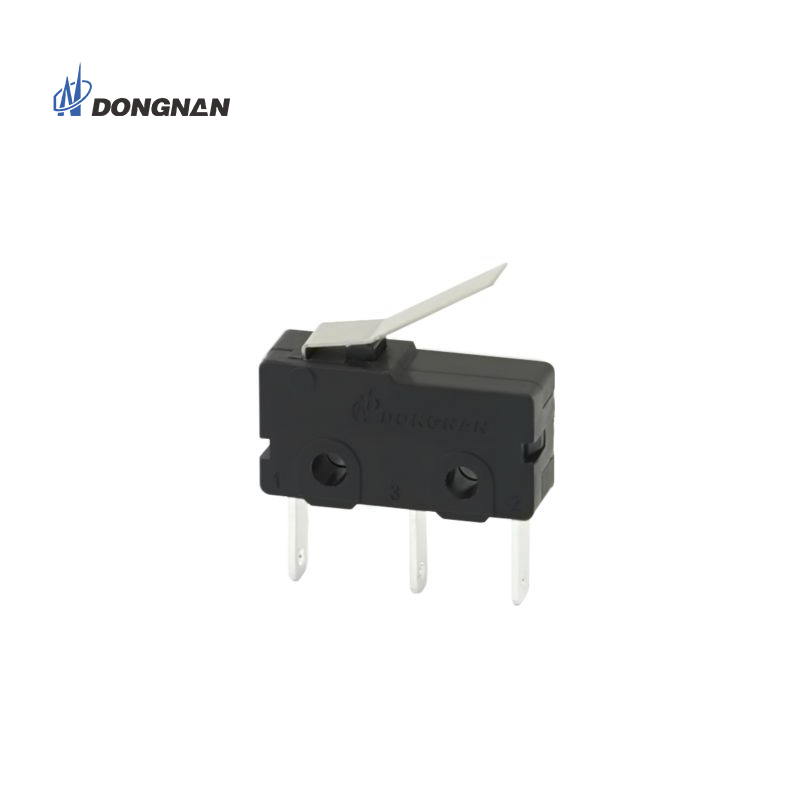

Sensitive Micro Limit Switch Push Button t125 5e4 Wholesale Images
