Factory Supply 5A 250VAC Plunger Sensitive Micro Switch

Item : (Test voltage) Between not connect terminals of the same polarity

Value : Mechanical 60 cycles/min; electrical 25 cycles/min

Contact Now

product details

Product Features

-Has protection function.

-Widely used in all kinds of home appliances, and also can be used in such as vacuum cleaner etc. Appliances which works in bad conditions.

description2

Factory Supply 5A 250VAC Plunger Sensitive Micro Switch

Product Parameters

Item	Value
Operating speed	0.1mm~1m/s (No lever)
Operating frequency	Mechanical 60 cycles/min; electrical 25 cycles/min
Insulation resistance	≥ 100MΩ(500VDC)
Contact resistance	≤50mΩ
(Test voltage) Between not connect terminals of the same polarity	AC1000V , 50/60Hz , 1min
(Test voltage) Between current-carrying metal parts and Ground(case), and between each terminal and non-current-carrying metal parts.	AC2000V , 50/60Hz , 1min
Vibration resistance	10~55Hz , 1.5mm Double amplitude
Shock resistance	Endurance:1000m/s2(approx.100G)max Wrong action:300m/s2(approx.30G)max
Electric shock proof protection degree	II class
Life	Mechanical ≥ 500,000 cycles Electrical ≥ 50,000 cycles
Safety approvals	UL,CUL,,ENEC, DEMKO,EK, CQC

Application

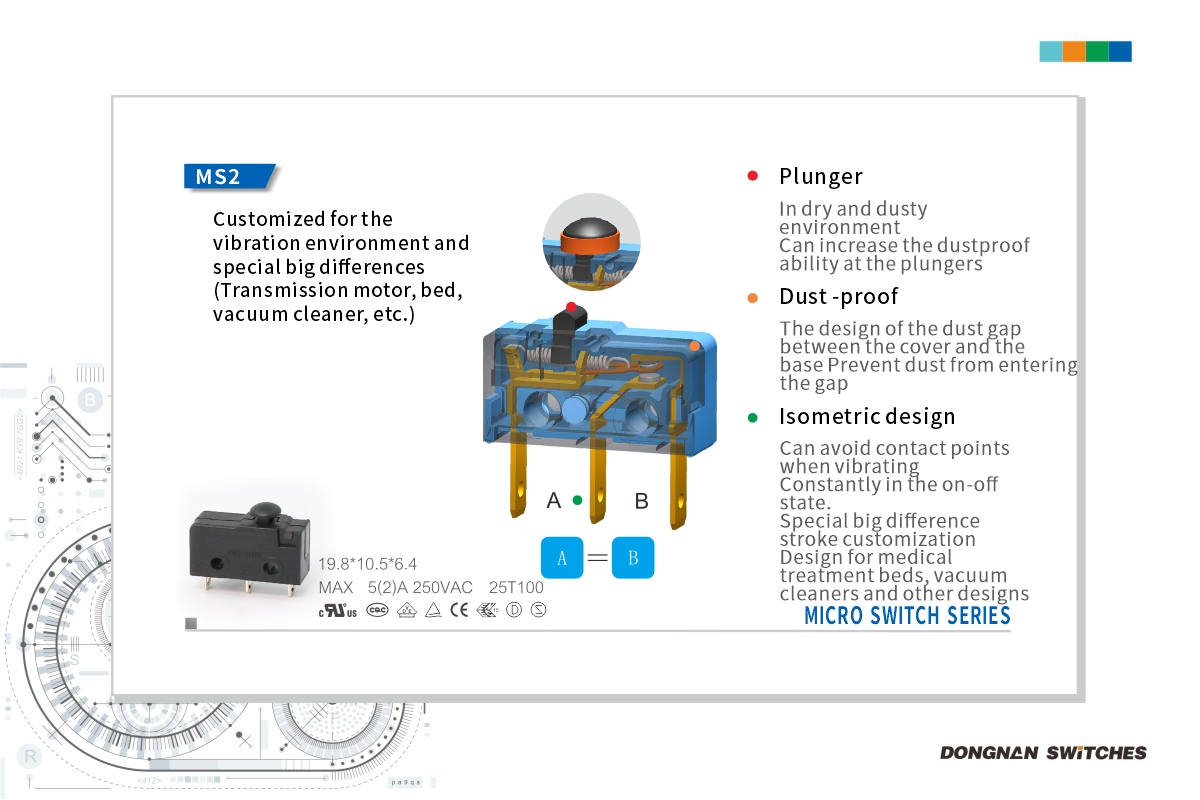

MS2 micro switch is a kind of microswitch with certain protection function, which can effectively protect the switch from short circuits or leakage. This type of microswitch can be used in appliances with harsh working environments, such as vacuum cleaners, because it is able to maintain stable working conditions under harsh working environments and will not be affected by external environments, such as dust and water vapor.

In addition to being used in vacuum cleaners, MS2 microswitches can also be used in medical beds. In medical environments, the stability and safety of switches is crucial. The protective features of MS2 microswitches can effectively safeguard the normal operation of medical equipment and ensure the safety of patients.

description2

Quality Factory Supply 5A 250VAC Plunger Sensitive Micro Switch for sale

Factory Supply 5A 250VAC Plunger Sensitive Micro Switch Images
