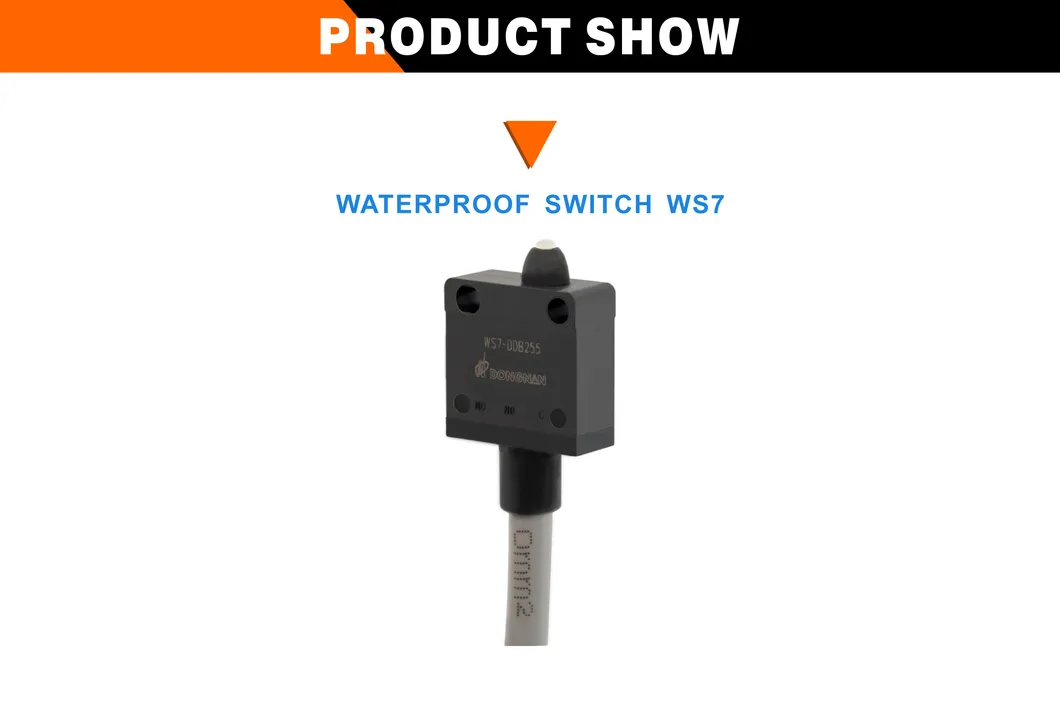

Ws7 Building Door Industrial Control Special Waterproof Micro Switch

MOQ : 5,000 Pieces

Model NO. : WS7

Certification : ISO9001, CE, Dve

Origin : China Yueqing

Application : Home Appliances

Specification : 485*270*230

Trademark : DONGNAN

Protection : Dust-Proof

Size : Small-Sized

Breaking Capacity : High-Current

Production Capacity : 2000000

Circuit-Z : Spdt

Brand : Dongnan

Circuit-T : Spst-No

Transport Package : Carton

Circuit-D : Spst-Nc

Electrical Life : 10,000 Cycles

Price : US $0.8 / Piece

Environment : ≧250℃﹤400℃

Mechanical Life : 1,000,000 Cycles

HS Code : 8536500000

Contact Now

1.Simple and reliable product structure , dustproof and waterproof.

2. Provide with a variety of wires.
3. Can be used in door and window control devices of building and in industrial control equipments.

Ws7 Building Door Industrial Control Special Waterproof Micro Switch

Item	Value
Environment temperature	-40-+85°C
Relative humidity	95%,40°C
Ratings	10(4)A 250VAC μ,10GPA 125/250VAC μ, 4A 30VDC 1/2hp 250VAC μ
Operating force	≤ 2N
Operating speed	0.1mm-1m/s (no lever)
Operating Frequency	Mechanical 60 cycles/min; electrical 25 cycles/min
Insulation resistance	≥ 100MΩ (500VDC)
Contact resistance	Terminal type ≤ 50mΩ wire type ≤ 100mΩ
(Test voltage) Between terminals of the same polarity	AC1000V , 50/60Hz , 1min
(Test voltage) Between current-carrying metal parts and ground(case),and between each terminal and non-current-carrying metal parts	AC1500V , 50/60Hz , 1min
Vibration resistance	10-55Hz , 1.5mm double amplitude
Shock resistance	endurance : 1000m/s2(approx.100G)max Wrong action:300m/s2(approx.30G)max
Electric shock proof protection grade	I class
Degrees of protection provided by enclosure	IEC IP67
Life	Mechanical ≥ 1,000,000 cycles Electrical ≥ 10,000 cycles

DONGNAN ELECTRONICS CO.,LTD established in 1987, with more than 30 years manufacturing experience in making switches. Mainly produce micro switches, water proof micro switches, power switches, gate control switches, rotary switches, voltage-selected switches etc. We are a national-level new and high-tech switch manufacturing enterprise that has R&D, producing, marketing and after-sales service, and our switches are widely used in whole China and oversea countries.
At present, we set up many offices and warehouses in the production area which home appliances are concentrated, to build the fastest technical service and logistics distribution system.

Q1.Compared with others, how is your price?
Our switch quality is guaranteed, the price is the factory price, no middlemen, good quality, good price.
Q2.How many square meters of your factory?
Our new factory is about 74,336 square meters
Q3.Does your product meet ROHS standards?
Yes, we meet ROHS standards
Q4.What Quality Assurance System does your factory pass?
GB/T19001-2008, ISO45001:2004, BSOHSAS18001:2007, QC080000 , IATF 16949
Q5.Do we have chance to be your dealer?
If your company can meet the conditions, we will evaluate and apply for you to be our dealer.
